SMEC started as the machine tools division of Samsung Heavy Industries in Korea in 1988. They develop, manufacture and sell high quality vertical machining centers for distribution in over 60 countries around the world. SMEC offers machining centers in multiple configurations.
PCV-SERIES

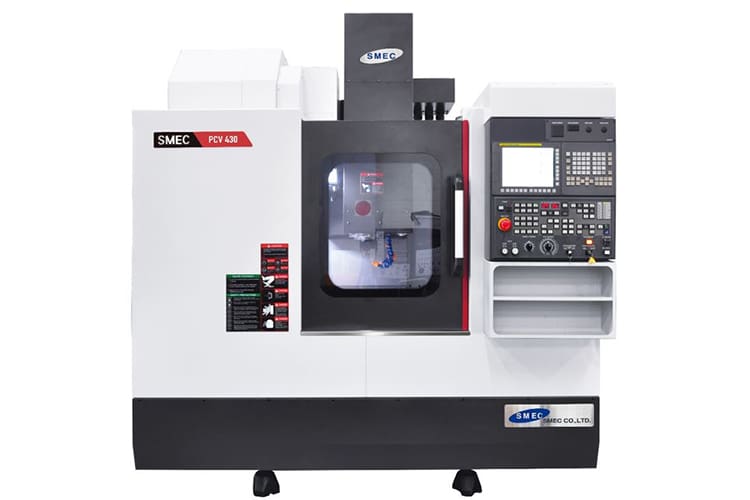

PCV 430
- Travel (X, Y, Z): 27.56″ x 16.93″ x 20.08″
- Tools: 25 tool ATC
- Spindle speed: 10,000 rpm
- Rapids: 1,890ipm
MCV-SERIES

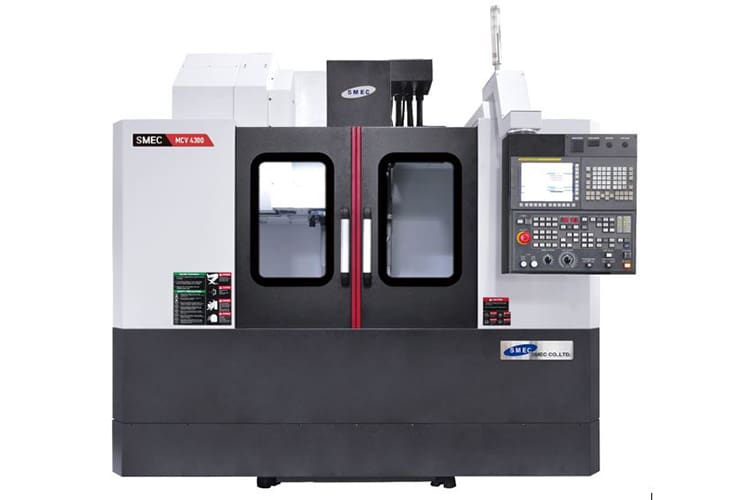

MCV 4300
- Travel (X, Y, Z): 30.31″ x 16.92″ x 20.08″
- Tools: 30 tool ATC
- Spindle: 40 taper Big Plus, 12,000 rpm
- Rapids: 1,417ipm
MCV 5200L
- Travel (X, Y, Z): 61.02″ x 20.47″ x 20.47″
- Tools: 30 tool ATC
- Spindle: 40 taper Big Plus, 12,000 rpm
- Rapids: 1,181ipm
MCV 5500
- Travel (X, Y, Z): 41.33″ x 21.65″ x 20.47″
- Tools: 30 tool ATC
- Spindle: 40 taper Big Plus, 10,000 rpm
- Rapids: 1,181ipm
MCV 5500(L)
- Travel (X, Y, Z): 49.21″ x 21.65″ x 20.47″
- Tools: 30 tool ATC
- Spindle: 40 taper Big Plus, 12,000 rpm
- Rapids: 1,181ipm
MCV 6700L
- Travel (X, Y, Z): 82.68″ x 26.38″ x 20.47″
- Tools: 30 tool ATC
- Spindle: 40 taper Big Plus, 12,000 rpm
- Rapids: 1,181ipm
LCV-SERIES
LCV 850
- Travel (X, Y, Z): 78.74″ x 33.46″ x 31.50″
- Spindle: 50 taper, 6,000rpm
- Tools: 40 tool ATC
- Rapids: 787ipm
LCV 1060
- Travel (X, Y, Z): 98.43″ x 41.73″ x 35.43″
- Spindle: 50 taper, 6,000rpm
- Tools: 40 tool ATC
- Rapids: 630ipm
LCV 6700
- Travel (X, Y, Z): 53.15″ x 26.38″ x 25.59″
- Spindle: 50 taper, 6,000rpm
- Tools: 30 tool ATC
- Rapids: 1,181ipm
